Since its public launch, in May 2008, Code Architects’ VB Migration Partner has
proven to be the most complete VB6-to-VB.NET code converter on the market. The power
of its code generation engine, which can be easily controller by over 80 different
migration pragmas, and the completeness of the companion support library were the
winning factors in this market segment.
VB Migration Partner version 1.50 is even more powerful than before, thanks to the
new support for VB6-to-C# code generation. This document outlines the many differences
between Visual Basic (both classic VB6 and VB.NET) and C#, and how these differences
may impact the migration process.
VB Migration Partner has no problem to convert virtually any VB6 keyword and feature
to VB.NET, with just a handful exceptions such as the VarPtr, StrPtr, ObjPtr undocumented
methods and a few others. This is possible also because the VB6 and VB.NET are more
similar to each other than you might think at first. For example, both Visual Basic
languages support error handling and late binding in the same way, a detail that
greatly simplifies the job of VB Migration Partner.
When converting from VB6 to C#, on the other hand, VB Migration Partner has to account
for many major and minor details that can make a *big* difference in some
cases. This document explains what these differences are and how VB Migration Partner
can fill the gap between VB6 and C# while preserving functional equivalent (and
illustrates the few cases when obtaining functional equivalence isn’t possible).
How to convert from VB6 to C#

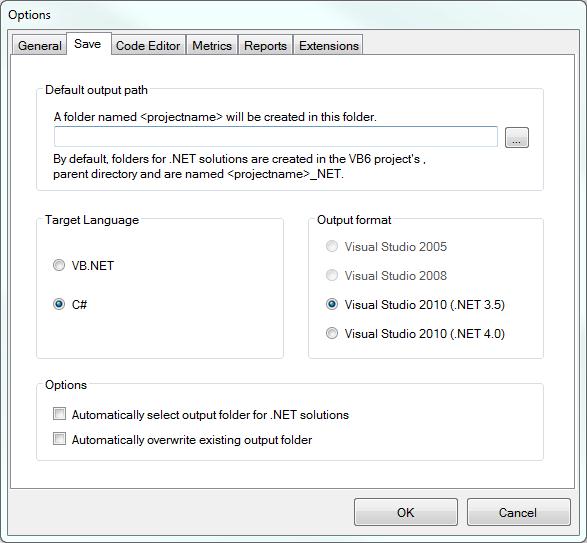

There are two ways to indicate C# as the target language of a migration:
When using the VBMP.EXE command-line version of VB Migration Partner, you can use
the new /language option:
VBMP myproject.vbp /language:c# /version:2010_40
C# doesn’t support modules
All VB6 modules are converted into C# static classes; all calls to methods defined
in a different module use the module’s name as a prefix.
Public Sub DoSomething()
End Sub
Private Sub Form_Load()
DoSomething()
End Sub
Here’s the C# translation of previous code:
public static class Functions
{
public static void DoSomething()
{
}
}
private void Form_Load()
{
Functions.DoSomething();
}
C# requires “VB6Helpers” class prefix to invoke methods in support library
A direct consequence of the fact that C# doesn’t support modules is that all calls
to methods defined in CodeArchitects.VBLibrary.dll require to be prefixed by the
class name. To make the generated code appear more consistent, all the support methods
in VBLibrary – including all methods with a “6” suffix such as Len6 or Abs6 – have
been duplicated in a static class named VB6Helpers, as this code demonstrates:
Public Sub DoSomething(ByVal i As Integer, ByRef s As String)
s = Left(s, String(" ", i))
End Sub
public void DoSomething(short i, ref string s)
{
s = VB6Helpers.Left(s, VB6Helpers.String(" ", i));
}
C# doesn’t support static local variables
VB6 allows defining a static local variable, that is a variable that preserves its
value between consecutive calls to the method where they are defined. Additionally,
if the method itself is defined with the Static keyword, then all its local variables
are implicitly static.
VB.NET supports static variables (even though it doesn’t support the Static keyword
when applied to methods), but C# doesn’t. For this reason, all static variables
are converted into class-level variables. If there is no other class-level variable
with same name, then the variable preserves its name; else, its name will be obtained
by prefixing the variable name with the method name, as this code demonstrates:
Private UserName As String
Public Sub DoSomething()
Static Password As String
Static UserName As String
Debug.Print UserName & " " & Password
End Sub
private string UserName;
private string Password;
private string DoSomething_UserName;
public void DoSomething()
{
VB6Helpers.DebugPrintLine(Password + " " + DoSomething_UserName);
}
C# doesn’t create an implicit local variable named after the current method or property
Under VB6 you specify the value to be returned by a Function or a Property Get procedure
by assigning a variable named after the function or the property. This technique
is also supported by VB.NET, which additionally lets you specify the returned value
by means of the Return keyword.
Under C# you have no choice, because the return keyword is the only way you
have to return a value from a function or a property get block. For each Function
and Property Get, VB Migration Partner defines a local variable named _retValue,
and correctly uses it in a property return statement.
Function Evaluate(ByVal x As Double) As Double
If x < 0 Then
Evaluate = -1
End If
Evaluate = Evaluate * 2
End Function
public double Evaluate(double x)
{
double _retValue = 0;
if (x < 0)
{
_retValue = -1;
}
_retValue *= 2;
return _retValue;
}
In very simple cases – for example when returning a constant value – the _retValue
variable is omitted and the returned value appears right in a return statement,
as in:
Function Evaluate2(ByVal x As Double) As Double
If x < 0 Then
Evaluate2 = 1 / x
Else
Evaluate2 = x * 2
End If
End Function
public double Evaluate2(double x)
{
if (x < 0)
{
return 1 / x;
}
else
{
return x * 2;
}
}
In addition to what we’ve seen so far, a C# code generator has to account for another
requirement: non-void methods and the get block of properties must explicitly return
a value. This differs from VB6 and VB.NET, which implicitly return the default value
for the method or property data type (zero, an empty string, or null).
You don’t have to worry about this detail, because VB Migration Partner always generates
an explicit return statement in all non-void methods. However, in some cases you
might want to revise the generated C# code and possibly simplify it. (You can perform
this kind of manual optimization at the end of the migration project.)
C# doesn’t support implicitly-declared local variable (Option Explicit Off)
Unless the Option Explicit directive is defined, in VB6 you don’t necessarily have
to declare all variables: if a variable is referenced by not declared, it is assumed
to be a Variant local variable. (More precisely, the type of undeclared variables
is affected by directives such as DefInt or DefDbl). This is true also for VB.NET,
but not for C#.
When converting to VB.NET, you can use the
DeclareImplicitVariables pragma
to force the declaration of all variables. Because C# doesn’t support undeclared
variables, this pragma is always assumed and variables are always declared when
converting to C#. However, VB Migration Partner conveniently generates a migration
warning for all implicitly-declared variables, so that you can check whether their
type was assumed correctly.
C# requires that all local variables be initialized before use
The VB.NET compiler generates a warning if a variable is used before being initialized,
but this warning can be ignored in most cases. The C# compiler is much stricter
in that respect, and all variables must be correctly initialized before use else
a compilation error occurs. This is also true for numeric, Date, and UDT variables,
which don’t cause a warning under VB.NET.
Public Sub DoSomething(ByVal k As Integer)
Dim i As Integer
Dim s As String
i = k
End Sub
public void DoSomething(short k)
{
short i = k;
string s = "";
}
C# can use the “out” keyword to define a parameter passed by reference
Both VB6 and VB.NET only recognize two mechanisms for passing an argument to a method
parameter: by-value (the ByVal keyword) or by-reference (the ByRef keyword). Conversely,
the C# language supports three value-passing mechanisms: by-value (no keyword),
by-reference in/out (the ref keyword) and by-reference out-only (the out
keyword).
For example, a method whose only purpose is to retrieve values from a database can
(and should ) use the out keyword for its parameters. In general, C# developers
should use the out keyword whenever possible, because it lets the C# compiler optimize
the generated code. Also, a variable that is passed to an out parameter doesn’t
need to be initialized before calling the method, which means that the compiler
generates better code both inside the method and whenever the method is invoked.
By default, VB Migration Partner converts by-reference VB6 parameters into ref
C# parameters, but you have the option to generate out parameters when
possible, by means of the
CSharpOption
UseOut pragma. In this case, VB Migration
Partner will use the out keyword where it’s possible to do so, as this example
demonstrates:
Public Sub DoSomething(ByRef x As Long, ByRef y As Long)
x = x * 2
y = x * 3
End Sub
public void DoSomething(ref int x, out int y)
{
x *= 2;
y = x * 3;
}
Like all
CSharpOption pragmas, the
CSharpOption
UseOut pragma can be applied at
the project, file, and method level.
Notice that no other VB6-to-C# conversion software supports the ability to generate
“out” parameters.
C# requires that the “ref” keyword is used when invoking a method, but the “ref”
keyword can’t be used with constants or expressions
This is an apparently minor detail that can severely affect the readability and
maintainability of generated C# code.
First and foremost, VB Migration Partner always attempts to generate methods without
ref parameters: if a parameter is never assigned inside a method, then it
is rendered as a by-value parameter. This behavior has to be specifically activated
when converting to VB.NET by means of the
UseByVal pragma, but it is applied
by default when converting to C#, on the assumption that a large number of by-reference
parameters forces VB Migration Partner to generate ugly and inefficient code. (However,
it is still possible to disable this behavior by defining a project-level
UseByVal
False pragma.)
The main problem with by-reference parameters is that C# only permits to pass variables
to them: if you pass a constant, a property, or an expression to such a parameter
you get a compilation error under C#. Only class fields, local variables, and parameters
can be passed to a C# ref parameter. Consider the following code:
Private Sub DoSomething(ByRef x As Long, ByRef y As Long, ByRef z As Long)
y = x * x
z = x * y
End Sub
Private Sub Test(ByRef k As Long)
DoSomething 1, 2, k
End Sub
private void DoSomething(int x, ref int y, out int z)
{
y = x * z;
z = x * y;
}
private void Test(out int k)
{
int _tempVar1 = 2;
DoSomething(1, ref _tempVar1, out k)
}
Notice that the x parameter is never assigned inside the DoSomething method,
therefore VB Migration Partner can safely convert it into a by-value parameter.
Moreover, being a by-value parameter, it is OK to pass a constant to it, as it happens
inside the Test method.
Conversely, the y parameter is assigned inside the DoSomething method and
must be rendered with the ref keyword. Being a by-reference parameter, it
isn’t legal to pass the “2” constant to it, as it happens inside the Test method.
For this reason, VB Migration Partner has to generate a temporary variable whose
only purpose is being able to use the ref keyword when invoking the method.
Finally, the z parameter is assigned inside the DoSomething method and is never used
before the assignment, therefore the
CSharpOption
UseOut pragma causes VB Migration Partner to use the
out keyword
for it. Notice that this keyword is also used inside the Test method and indirectly causes
the k parameter to be defined with the out keyword as well.
The problem with this C# requirement is that sometimes forces VB Migration Partner to generate
a lot of temporary variables when invoking a method with many by-reference parameters. Even worse,
in some cases it is impossible to correctly generate such temporary variables, for example when
the code invokes a Function inside an If, ElseIf, or Do statement. Consider the following code:
Function Evaluate(x As Long, y As Long, z As Long) As Long
x = x + 1
y = y * x
z = z * x * y
Evaluate = x + y + z
End Function
Sub Test()
Dim i As Long
Do
Debug.Print i
Loop While Evaluate(i, 2, 4) < 100
End Sub
public int Evaluate(ref int x, ref int y, ref int z)
{
x++;
y *= x;
z = z * x * y;
return (short)(x + y + z);
}
public void Test()
{
int i = 0;
do
{
VB6Project.DebugPrintLine(i);
}
while ( Evaluate(ref i, ref _tempVar1, ref _tempVar2) < 100 );
}
In the above examples, there is no “right” place where VB Migration Partner can insert
the declaration of the _tempVar1 and _tempVar2 temporary variables, therefore it just
emits an UPGRADE_ISSUE message that specifies the missing declarations. It’s impossible
to overlook this message, because the absence of variable declarations causes a compilation
error, thus you *must* insert the declaration in an appropriate place before you can run the
converted C# code.
This situation is very common in generated C# code, which therefore tends to be ugly, bloated,
difficult to maintain, hard to evolve, and slightly less efficient than it should. Moreover,
when the declaration of temporary variables can’t be performed automatically, it’s a sheer waste of time.
To work around these issues, VB Migration Partner supports the powerful
CSharpOption
OverloadsForByval
pragma, which can be applied at the project, file, and method level. As its name suggests, this pragma
forces VB Migration Partner to generate all the necessary overloads for a given method that has one or
more ref parameters. For example, when this pragma is applied against the previous VB6 code, the following
C# code is generated:
public int Evaluate(ref int x, int y, int z)
{
return Evaluate(ref x, ref y, ref z);
}
public int Evaluate(ref int x, ref int y, ref int z)
{
x++;
y *= x;
z = z * x * y;
return (x + y + z);
}
public void Test()
{
int i = 0;
do
{
VB6Project.DebugPrintLine(i);
}
while ( Evaluate(ref i, 2, 4) < 100 );
}
As you see, thanks to the
CSharpOption
OverloadsForByval pragma, the generated C# code
is much more readable, looks like the code that a developer would write, and – more important
– doesn’t require any manual fix after the migration.
The UPGRADE_INFO warning clearly marks all the overloads that were generated by VB Migration
Partner to avoid temporary variables when a given method is invoked. Notice that VB Migration
Partner only generates the overloads that are strictly needed in current program, as opposed
as to all the possible combination of by-value and by-reference parameters. If the method is
public and is accessible from a different project, the method is also marked with a VB6Annotation attribute:
[VB6Annotation(GeneratedOverload=true)]
public int Evaluate(ref int x, int y, int z)
{
return Evaluate(ref x, ref y, ref z);
}
Notice that no other VB6-to-C# conversion software supports the ability to generate overloads for
methods that expose by-reference parameters used with by-value semantics.
C# doesn’t support ref/out optional parameters
The C# language that comes with VS2010 and later version supports optional parameters,
with the following restriction: only a by-value parameter can be defined as optional.
This detail makes the conversion from VB6 to C# more difficult than it should if the
code contains many methods with optional parameters, even though the problem is somewhat
less serious than it might appear because VB Migration Partner automatically generates
by-value parameter if the parameter is never assigned inside the method.
Consider the following VB6 code and the corresponding C# that VB Migration Partner generates:
Sub DoSomething(Optional x As Long = 1, Optional y As Long = 2, Optional z As Long = 3)
y = x * z
End Sub
Sub Test()
Dim x1 As Long
DoSomething x1
End Sub
public void DoSomething(int x, ref int y, int z = 3)
{
y = x * z;
}
public void Test()
{
int x1 = 0;
int _tempVar1 = 2;
DoSomething(x1, ref _tempVar1);
}
Notice that the x and z parameters in the DoSomething method were rendered using the
by-value semantics, but the y parameter wasn’t (because it is assigned inside the method).
For these reason, even if all three parameters were defined as optional in VB6, only
the z parameter was actually rendered as an optional parameter in C#. (The
y parameter
is non-optional because it is a ref parameter, whereas the x parameter is non-optional
because an optional parameter can precede a non-optional parameter in the method signature.)
Under VB6, the Test method invokes the DoSomething method and omits the values for the
y and z
parameters. Under C#, however, the first two parameters are non-optional, therefore VB Migration
Partner automatically generates a temporary variable to account for the fact that y isn’t optional
after the conversion.
These automatically-generated temporary variables can negatively affect the readability and overall
quality of the generated C# code, as it happens for temporary variables that must be generated to
account for ref/out non-optional parameters. You can avoid such defect by applying the
CSharpOption
OverloadsForOptional pragma, at the project, file, or method level. When such a pragma is applied to
the above VB6 code, this is what VB Migration Partner generates:
[VB6Annotation(GeneratedOverload=true)]
public void DoSomething()
{
int y = 2;
DoSomething(1, ref y, 3);
}
[VB6Annotation(GeneratedOverload=true)]
public void DoSomething(int x)
{
int y = 2;
DoSomething(x, ref y, 3);
}
VB6Annotation(GeneratedOverload=true)]
public void DoSomething(int x, ref int y)
{
DoSomething(x, ref y, 3);
}
public static void DoSomething(int x, ref int y, int z)
{
y = x * z;
}
public void Test()
{
int x1 = 0;
DoSomething(x1);
}
As you can see, when the
CSharpOption
OverloadsForOptional pragma is used, VB Migration Partner generates
a number of overloads equal to the number of optional parameters in the original method, but removes all
optional parameters from the method itself. Thanks to these overloads, the code (in the Test method) that
invokes the DoSomething method doesn’t require temporary variables.
Notice that – even when this pragma is used – there is still one case when a temporary variable is generated.
This happens when the calling code omits an argument that is passed to a ref/out parameter, but passes a value
to another parameter after it, as in the following VB6 code and the corresponding C# code:
Public Sub Test()
Dim x1 As Long
DoSomething , , x1
End Sub
public void Test()
{
int _tempVar1 = 2;
DoSomething(1, ref _tempVar1, x1);
}
In cases such as this, you can avoid the temporary variables by combining the
CSharpOption
OverloadsForOptional with the
CSharpOption
OverloadsForByval. When these two pragmas are used
together, VB Migration Partner generates an additional overload for the DoSomething method, which
in turn allows simplifying the code generated inside the Test method:
public void DoSomething(int x, int y, int z)
{
DoSomething(x, ref y, z);
}
public void Test()
{
int x1 = 0;
DoSomething(1, 2, x1);
}
Notice that other VB6-to-C# conversion programs support optional parameters only by means of C# method
overlods and fail to leverage C# optional parameters that were introduced in VS2010, which means that
they *always* generate a lot of bloated and unnecessary code. Besides, VB Migration Partner’s
CSharpOption
OverloadsForOptional pragma can be specified at the file or method level, which means
that you never generate unnecessary overloads.
C# doesn’t support Date constants
VB6 Date variables and functions are converted to DateTime variables when converting to C#. While
the correspondence appears to be perfect, the fact that Date isn’t a native C# data type has a number
of important implications.
First and foremost, you can’t define a DateTime constant in C#. In fact, when converting a VB6 Date
constant to C#, VB Migration Partner generates a readonly DateTime variable, as this code demonstrates:
Public Const LASTDAY As Date = #12/31/2012#
public readonly DateTime LASTDAY = VB6Helpers.DateConst("12/31/2012");
Notice that VB Migration Partner purposely generates a reference to the VB6Helpers.DateConst method
rather than using the constructor of the DateTime type, for you to quickly locate all converted Date
constants. Optionally, you can convert these occurrences into DateTime constructors by adding the
following
PostProcess pragma:
"new DateTime(${yy}, ${mm}, ${dd})"
Second, the fact that you can’t define a C# DateTime constant means that you can’t specify a default value
for an optional DateTime parameter. As a matter of fact, C# doesn’t support DateTime optional parameters:
when converting a method that has one or more optional Date parameters, VB Migration Partner generates a C#
method whose corresponding parameter isn’t optional, as this code demonstrates:
Public Sub DoSomething(Optional ByVal x As Long, Optional ByVal d As Date, Optional ByVal z As Long)
End Sub
public void DoSomething(int x, DateTime d, int z = 0)
{
}
Notice in previous code that the d parameter is rendered as non-optional, as is the
x parameter
(because optional parameter can precede non-optional ones). You can somewhat reduce the impact
of this C# language limitation by means of the
CSharpOption
OverloadsForOptional pragma.
No other VB6-to-C# conversion program accounts for the fact that C# doesn’t support Date constants,
leave it alone Date optional parameters: these programs just generate code that causes one or more
compilation errors.
C# doesn't support passing a scalar variable to a "ref" Object parameter
Under VB6 it is possible to pass a scalar variable - that is, a numeric, string, or Date variable - to a
ByRef Variant parameter and expect that the called method modifies the value of the variable. This behavior
was replicated under VB.NET, but can’t be replicated under C#: when passing an argument to a ref parameter,
C# requires that the argument be a variable of same type as the argument.
For this reason, in these circumstances VB Migration Partner has to generate temporary Object variables
before invoking the method, and has to reassign the value of these temporary variables back to the original
scalar variables when the method exits, as the following code demonstrates:
Public Function Evaluate(v1 As Variant, v2 As Variant) As Long
v1 = v1 * 2
v2 = v2 * 4
Evaluate = v1 * v2
End Function
Sub Test(x As Long, y As Long)
Evaluate x, y
End Sub
public int Evaluate(ref dynamic v1, ref dynamic v2)
{
v1 = VB6Helpers.CInt(v1) * 2;
v2 = VB6Helpers.CInt(v2) * 4;
return (int)(VB6Helpers.CDbl(v1) * VB6Helpers.CDbl(v2));
}
public void Test(ref int x, ref int y)
{
object _tempVar1 = x; object _tempVar2 = y;
Evaluate(ref _tempVar1, ref _tempVar2);
x = VB6Helpers.CInt(_tempVar1); y = VB6Helpers.CInt(_tempVar2);
}
If the method calls occurs inside an If, ElseIf, Do, or For statement, VB Migration
Partner is unable to correctly insert the assignments before or after the method call.
In such cases, an UPGRADE_ISSUE is generated and you are expected to manually fix the
problem, as in this code:
Sub Test(x As Long, y As Long)
If Evaluate(x, y) > 10 Then
Debug.Print "greater"
ElseIf Evaluate(x, y) = 0 Then
Debug.Print "zero"
End If
End Sub
public void Test(ref int x, ref int y)
{
object _tempVar1 = x; object _tempVar2 = y;
if ( Evaluate(ref _tempVar1, ref _tempVar2) > 10 )
{
VB6Project.DebugPrintLine("greater");
dynamic _tempVar3 = x; dynamic _tempVar4 = y;
}
else if ( Evaluate(ref _tempVar3, ref _tempVar4) == 0 )
{
VB6Project.DebugPrintLine("zero");
}
}
Notice that VB Migration Partner generates two different kinds of messages: warning #12D8 refers
to statements that should be inserted before the next statement, whereas warning #12E8 refers to
statements that should be inserted after the next statement.
You might mistakenly believe that warning #12E8 is superfluous and that VB Migration Partner could just
generate the following C# code:
dynamic _tempVar1 = x; dynamik _tempVar2 = y;
if ( Evaluate(ref _tempVar1, ref _tempVar2) > 10 )
{
x = VB6Helpers.CInt(_tempVar1); y = VB6Helpers.CInt(_tempVar2);
VB6Project.DebugPrintLine("greater");
}
else if ( Evaluate(ref _tempVar3, ref _tempVar4) == 0 )
{
x = VB6Helpers.CInt(_tempVar3); y = VB6Helpers.CInt(_tempVar4);
VB6Project.DebugPrintLine("zero");
}
However, a closer examination of this code reveals that there is no guarantee that the lines in boldface
will be executed, because it would depend on whether the conditions of the
if and else if statements are true or not.
Quite surprisingly, other VB6-to-C# conversion programs aren't aware of this detail, and therefore
generate code that isn't equivalent to the original VB6 code and that might introduce hard-to-find
subtle bugs in the generated C# code.
Notice that the need to generate extra statements before and after the method call only depends on the
fact that the Object parameter uses by-reference semantics, therefore you can reduce the number of these
extra lines by attempting to remove these ref parameters if they aren't strictly necessary, for example
by means of the
CSharpOption
OverloadsForByval pragma.
Another way to work around this issue is manually creating an overload for the Evaluate method that takes
int parameters, and then modify the generated code to use this new overload instead:
public int Evaluate(ref dynamic v1, ref dynamic v2)
{
v1 = VB6Helpers.CInt(v1) * 2;
v2 = VB6Helpers.CInt(v2) * 4;
return (int)(VB6Helpers.CDbl(v1) * VB6Helpers.CDbl(v2));
}
public int Evaluate(ref int v1, ref int v2)
{
v1 = v1 * 2;
v2 = v2 * 4;
return ( v1 * v2 );
}
public void Test(ref int x, ref int y)
{
if ( Evaluate(ref x, ref y) > 10 )
{
VB6Project.DebugPrintLine("greater");
}
else if ( Evaluate(ref x, ref y) == 0 )
{
VB6Project.DebugPrintLine("zero");
}
}
C# only supports “null” as the default value for an optional Object parameter
Under Visual Basic, an optional Variant parameter can have any default value, including a number,
a string, or the special Null or Empty values. Conversely, under C# an Object optional parameter’s
default value can only be null. This minor detail forces VB Migration Partner to deal the parameter
as if it were non-optional in most method calls, as the following code demonstrates:
Sub Test()
DoSomething
End Sub
Sub DoSomething(Optional ByVal v As Variant = Null, Optional ByVal v2 As Variant = Empty,
Optional ByVal v2 As Variant = "missing", Optional ByVal v4 As Variant)
End Sub
public void Test()
{
DoSomething(VB6Helpers.Null, VB6Helpers.Empty, "missing", VB6Helpers.Missing);
}
public void DoSomething(dynamic v = null, dynamic v2 = null, dynamic v2 = null, dynamic v4 = null)
{
}
This sort of behavior is quite common when invoking methods defined in COM libraries, especially
Microsoft Office libraries, which tend to expose many by-reference optional Variant parameters.
In some cases, VB Migration Partner is forced to generate additional code to preserve functional
equivalence:
Sub Test(ByVal wordobj As Word.Application)
wordObj.ActiveDocument.CheckSpelling IgnoreUppercase:=True
End Sub
public void Test(Word.Application wordobk)
{
dynamic _tempVar1 = true; dynamic _tempVar2 = VB6Helpers.Missing;
dynamic _tempVar3 = VB6Helpers.Missing; dynamic _tempVar4 = VB6Helpers.Missing;
dynamic _tempVar5 = VB6Helpers.Missing; dynamic _tempVar6 = VB6Helpers.Missing;
dynamic _tempVar7 = VB6Helpers.Missing; dynamic _tempVar8 = VB6Helpers.Missing;
dynamic _tempVar9 = VB6Helpers.Missing; dynamic _tempVar10 = VB6Helpers.Missing;
dynamic _tempVar11 = VB6Helpers.Missing; dynamic _tempVar12 = VB6Helpers.Missing;
objword.ActiveDocument.CheckSpelling(IgnoreUppercase: ref _tempVar1,
CustomDictionary: ref _tempVar2, AlwaysSuggest: ref _tempVar3,
CustomDictionary2: ref _tempVar4, CustomDictionary3: ref _tempVar5,
CustomDictionary4: ref _tempVar6, CustomDictionary5: ref _tempVar7,
CustomDictionary6: ref _tempVar8, CustomDictionary7: ref _tempVar9,
CustomDictionary8: ref _tempVar10, CustomDictionary9: ref _tempVar11,
CustomDictionary10: ref _tempVar12);
}
While VB Migration Partner always generate code that is functional equivalent to the original VB6 code, it should
be noted that ref optional parameters can be omitted if the method belongs to a COM interface, as explained in the
following MSDN article:
http://msdn.microsoft.com/en-us/library/ms178843%28v=VS.100%29.aspx#Y570
Therefore the resulting C# code can be often be simplified if selecting a method that belongs to a
COM interface. This optimization must be performed manually, once the migration process is over.
Implementing late-bound calls with Invoke helper methods
By default, VB Migration Partner converts Variant and Object variables using the dynamic data type
(new in C# 2010); however, it is also possible to use the
CSharpOption
UseObject pragma to convert
these variables using the standard object data type, in which case all late-bound calls are converted
by means of helper methods. (This approach may be necessary if you want to keep the generated C# code
compatible with previous Visual Studio versions.)
Public Sub Test(ByVal o As Object, ByVal v As Variant)
o.DoSomething v
o.DoSomething v.Evaluate
o.DoSomething(v).Evaluate
End Sub
public void Test(object o, object v)
{
VB6Helpers.Invoke(o, "DoSomething", v);
VB6Helpers.Invoke(o, "DoSomething", VB6Helpers.Invoke(v, "Evaluate"));
VB6Helpers.Invoke(VB6Helpers.Invoke(o, "DoSomething(v)"), "Evaluate");
}
The actual late-bound call is performed by the VB6Helpers.Invoke helper method; if your original
VB6 makes heavy use of late binding, expect to see tons of occurrences of VB6Helper.Invoke methods
in the generated code, to the point where the code becomes slow, hard to maintain and evolve. In
such circumstances you should consider the opportunity to redesign the original code or modify the
generated C# code or, more simply, rely on the dynamic data type..
When the late-bound code is under the scope of a
DefaultMemberSupport
pragma, VB Migration Partner
simplifies the code by merging the calls to VB6Helpers.Invoke and VB6Helpers.GetDefaultMember into a
single call to the VB6Helpers.InvokeGetDefault method, as this code demonstrates:
Sub Test(v As Variant, o As Object)
v = o.Evaluate
End Sub
public void Test(ref object v, object o)
{
v = VB6Helpers.InvokeGetDefault(o, "Evaluate");
}
C# supports limited form of late-binding by means of “dynamic” members
In an important breakthrough from previous version, C# 2010 supports a somewhat
limited form of late-binding by means of the dynamic keyword, which is basically a
synonym for object that additionally supports late-binding both in function calls
and in math operators.
By default, VB Migration Partner automatically leverages this important C# feature, as in this example:
Public Sub Test(ByVal o As Object, ByVal v As Variant)
o.DoSomething v
o.DoSomething v.Evaluate()
o.DoSomething(v).Evaluate
End Sub
public void Test(dynamic o, dynamic v)
{
o.DoSomething(v);
o.DoSomething(v.Evaluate());
o.DoSomething(v).Evaluate;
}
The dynamic keyword almost perfectly mimics the behavior of late-binding under VB6, with the following exceptions:
- Late-bound member names are case-sensitive (as are all names in C#).
- Late-bound method names with no arguments must end with an empty parenthesis pair
(e.g. DoSomething() ), to distinguish them from late-bound properties.
- if two dynamic variables appear as operands of a “+” operator, it is considered to be a
string concatenation operation if either variable contains a string. (Conversely,
under VB6 it is considered an addition if either Variant operand is numeric.)
- if a dynamic variable appears as operand of any math operator other than “+”, the
operation fails if the variable doesn’t contain a numeric value. (Conversely, under
VB6 this operation succeeds if the Variant operand contains a string that can be
converted to a number.)
If a late-bound method uses the wrong casing (see point A), you should fix the original VB6 code.
Likewise, if the original VB6 code invokes a late-bound method with no parameters, you should ensure
that the code includes
res = v.Evaluate()
v.Evaluate()
By default, VB Migration Partner appends a pair of empty parenthesis
only if the pair appears in the original VB6 code. This is intentional, because it allows you
to distinguish between late-bound properties and late-bound methods. However, you need a
ParseReplace pragma if the original VB6 statement rejects the empty parenthesis pair,
as in this example:
v.Evaluate
By default, when using dynamic variables, VB Migration Partner assumes that all variables contain
data that don’t require further conversion before they can be used in math operations or as arguments
to methods call, as in this example:
Public Function Evaluate(ByVal v1 As Variant, ByVal v2 As Variant) As Variant
Evaluate = v1 * v2
End Sub
public dynamic Evaluate(dynamic v1, dynamic v2)
{
return v1 * v2;
}
In some cases, however, this assumption is incorrect and you might want to explicitly convert
dynamic
values into the expected data type. You can force VB Migration Partner to generate all needed conversion
code by means of the
CSharpOption
ForceConversions pragma:
Public Function Evaluate(ByVal v1 As Variant, ByVal v2 As Variant) As Variant
Evaluate = v1 * v2
End Sub
public dynamic Evaluate(dynamic v1, dynamic v2)
{
return VB6Helpers.CDbl(v1) * VB6Helpers.CDbl(v2);
}
The
CSharpOption
ForceConversions pragma can have project, file, or method scope.
If applied at the variable-level scope, the pragma has no effect on the way the variable is used
inside expressions.
No other VB6-to-C# converter can generate code that leverages the C# dynamic data type.
C# doesn’t support properties with parameters
Under both VB6 and VB.NET it is legal to define any number of properties with arguments, even though only
one of them can be marked with the Default keyword. C# doesn’t support properties with arguments, even
though it supports indexers (i.e. the special member named this).
When converting a class that contains one or more properties with arguments, VB Migration Partner generates
an indexer only for the default property, and a pair of get_propname and
set_propname methods for all the
other properties. If none of the properties is the default property, no index is generated. Consider the
following VB6 class named TestClass:
Private m_Items(100) As String
Private m_Names(100) As String
Public Property Get Item(ByVal index As Long) As String
Item = m_Items(index)
End Property
Public Property Let Item(ByVal index As Long, ByVal value As String)
m_Items(index) = value
End Property
Public Property Get Name(ByVal index As Long) As String
Name = m_Names(index)
End Property
Public Property Let Name(ByVal index As Long, ByVal value As String)
m_Names(index) = value
End Property
Sub Test()
Dim o As New TestClass
o(1) = o(2)
o.Item(1) = o.Item(2)
o.Name(1) = o.Name(2)
End Sub
Here’s the corresponding C# code generated by VB Migration Partner:
private string[] m_Items = new string[101];
private string[] m_Names = new string[101];
public string this[int index]
{
get
{
return m_Items[index];
}
set
{
m_Items[index] = value;
}
}
public string get_Name(int index)
{
return m_Names[index];
}
public void set_Name(int index, string value)
{
m_Names[index] = value;
}
public void Test()
{
TestClass o = new TestClass();
o[1] = o[2];
o[1] = o[2];
o.set_Name(1, o.get_Name(2));
}
You have a special case when a class with a default Variant property with argument is under the scope of
a
PreservePropertyAssignmentKind pragma. In these circumstances, a Variant property that is defined by means
of Property Get, Property Let, and Property Set procedures generates a separate setobj_propname method that
contains the code that was originally included in the Property Set procedure. For example, consider
this VB6 code:
Public Property Get Item(ByVal index As Long) As Variant
Item = m_Items(index)
End Property
Public Property Let Item(ByVal index As Long, ByVal value As Variant)
m_Items(index) = value
End Property
Public Property Set Item(ByVal index As Long, ByVal value As Variant)
Set m_Items(index) = value
End Property
Sub Test()
Dim o As New DefaultProperty
o(1) = o(2)
Set o(1) = o(2)
End Sub
You can see how the
PreservePropertyAssignmentKind pragma affects both the rendering
of the property under C# and the client that uses the Set keyword to assign the property:
public object this[int index]
{
get
{
return m_Items[index];
}
set
{
m_Items[index] = value;
}
}
public void setobj_Item(int index, object value)
{
m_Items[index] = value;
}
public void Test()
{
TestClass o = new TestClass();
o[1] = o[2];
o.setobj_Item(1, o[2]);
}
No other VB6-to-C# conversion software supports the ability to discern between simple
assignments and “Set” assignments to properties that expose both the Property Let and
the Property Set procedures.
There is one minor difference between Visual Basic and C# worth mentioning: C# doesn’t
support optional parameters in properties. When your VB6 code include a property with
optional parameters, VB Migration Partner converts it into a property with all non-optional
parameters, and modifies call references to that property accordingly.
C# doesn’t support the a keyword equivalent to ReDim Preserve
There are several differences in how Visual Basic (both VB6 and VB.NET) and C# declare arrays,
the most important of which are:
- C# requires that you specify the number of elements in the array, whereas Visual Basic requires
that you specify the index of the last element
- C# doesn’t support the ReDim Preserve keyword
VB Migration Partner automatically compensates for the different value to be used when declaring
or ReDim-ming an array, as the following code demonstrates:
Public Sub DoSomething(ByVal count As Integer)
Dim arr(10) As String
Dim arr2() As Double
ReDim arr2(count)
End Sub
public void DoSomething(short count)
{
string[] arr = new string[11];
double[] arr2 = null;
arr2 = new double[count + 1];
}
The ReDim Preserve keyword is supported via the VB6Helpers.RedimPreserve method in the support library.
In this case, the last argument is the index of the last item, as it happens in VB.NET:
Public Sub DoSomething(ByVal count As Integer, arr() As String)
ReDim Preserve arr(10) As String
End Sub
public void DoSomething(short count, ref string[] arr)
{
VB6Helpers.RedimPreserve(ref arr, 0, count);
}
C# doesn’t support WithEvents variables
Unlike both VB6 and VB.NET, the C# language doesn’t support WithEvents variables. This limitation has two
important consequences. First, VB Migration Partner has to generate the code that associates a given method
as the handler for a control’s event, in the code-behind portion of all forms, as in the following example:
this.Text1.Name = "Text1";
this.Text1.Size = new System.Drawing.Size(121, 41);
this.Text1.Location = new System.Drawing.Point(48, 24);
this.Text1.TabIndex = 0;
this.Text1.Text = "Text1";
this.Text1.Change += new CodeArchitects.VB6Library.Events.VB6EventHandler_
(this.Text1_Change);
this.Text1.GotFocus += new CodeArchitects.VB6Library.Events.VB6EventHandler
(this.Text1_GotFocus);
this.Text1.KeyPress += new CodeArchitects.VB6Library.Events.VB6KeyPressEventHandler
(this.Text1_KeyPress);
Second, VB Migration Partner converts a WithEvent variables into a property that wraps a private variable,
and the property’s setter contains the code that associates the object’s events with the methods that
handle that event. Here’s an example:
Dim WithEvents txtField As TextBox
Private Sub txtField_Change()
Debug.Print "Field has changed"
End Sub
Private Sub txtField_KeyPress(KeyAscii As Integer)
Debug.Print "A key has been pressed"
End Sub
private VB6TextBox txtField_InnerField;
private VB6TextBox txtField
{
get
{
return txtField_InnerField;
}
set
{
if (object.Equals(txtField_InnerField, value))
return;
if (txtField_InnerField != null)
{
txtField_InnerField.Change -= txtField_Change;
txtField_InnerField.KeyPress -= txtField_KeyPress;
}
txtField_InnerField = value;
if (txtField_InnerField != null)
{
txtField_InnerField.Change += txtField_Change;
txtField_InnerField.KeyPress += txtField_KeyPress;
}
}
}
private void txtField_Change()
{
VB6Project.DebugPrintLine("Field has changed");
}
private void txtField_KeyPress(ref short KeyAscii)
{
VB6Project.DebugPrintLine("A key has been pressed");
}
The C# implementation of a WithEvents variable has exactly the same behavior as in VB6, with a caveat:
if you later extend/improve the application by adding another event handler for that variable, it’s up
to you to manually modify the wrapper property to account for the new handlers. (In VB.NET this manual
step is never necessary.)
C# has a different syntax to define and raise events
Under VB6 and VB.NET you define an event by means of the Event keyword, and trigger the
event by means of the RaiseEvent keyword:
Public Event Change(ByVal oldText As String, ByVal newText As String)
Private Sub OnChange(ByVal oldText As String, ByVal newText As String)
RaiseEvent Change(oldText, newText)
End Sub
C# supports the event keyword, however it requires that you define a delegate type that matches
the event signature; conversely, C# doesn’t directly support the RaiseEvent keyword and requires
that you manually invoke the delegate. This is the code that VB Migration Partner produces:
#region Project-level delegate classes
public delegate void ChangeEventHandler(string oldText, string newText);
#endregion
public event ChangeEventHandler Change;
private void OnChange(string oldText, string newText)
{
if (Change != null)
{
Change(oldText, newText);
}
}
Interestingly, VB Migration Partner never generates a delegate type unless it’s strictly necessary to do so.
For example, if the event signature matches a delegate that is already defined in CodeArchitects.VBLibrary.dll,
then VB Migration Partner uses the delegate in the library instead of defining a delegate type inside the
current project.
All the delegate types defined for the current project are gathered in a region named
Project-level delegate classes, which is inserted in the first generated C# file.
C# can implement an interface either implicitly or explicitly
Under VB6 you specify that a method in a class is implementing an interface member by means
of a naming convention, i.e. the method must be named interfacename_membername. Under VB.NET
you get the same result by using the Implements keyword immediately after the method declaration.
C# provides two ways to reach the same goal: you can implement the interface member implicitly
(by defining a public method that has the same name as the interface member) or implicitly (by creating
a private method named interfacename.membername).
Consider the following VB6 classes, and notice that we’ve used the
ClassRenderMode pragma to tell
VB Migration Partner that we are only interested in using IWidget.cls to generate a .NET interface:
Public TestField As Double
Sub TestSub(ByVal x As Integer)
End Sub
Property Get TestProperty() As Integer
End Property
Implements IWidget
Private Property Let IWidget_TestField(ByVal RHS As Double)
End Property
Private Property Get IWidget_TestField() As Double
End Property
Private Sub IWidget_TestSub(ByVal x As Integer)
End Sub
Private Property Get IWidget_TestProperty() As Integer
End Property
By default, VB Migration Partner uses the implicit implementation, and this is the C# that it produces:
internal interface IWidget
{
double TestField {get; set;}
void TestSub(short x);
short TestProperty {get; set;}
}
internal class TestWidget : IWidget
{
public double TestField
{
get
{
}
set
{
}
}
public void TestSub(short x)
{
}
public short TestProperty
{
get
{
}
}
}
In some cases you might want to have VB Migration Partner implement the interface explicitly. For example,
this arrangement might be necessary to avoid name collisions, or desirable to meet your company’s coding
guidelines. You can obtain the explicit interface implementation by simply adding a
CSharpOption
ExplicitInterfaceImplementation pragma. If this pragma is added to the TestWidget class, the generated C#
code becomes:
internal class TestWidget : IWidget
{
double IWidget.TestField
{
get
{
}
set
{
}
}
void IWidget.TestSub(short x)
{
}
short IWidget.TestProperty
{
get
{
}
}
}
Interestingly, you can
CSharpOption
ExplicitInterfaceImplementation pragma at the project level (to affect all
interface implementations), at the file level (to affect the way a single class implements one or more
interfaces), or the method level (to specify the only interface members that should be implemented explicitly).
In general, you should implement an interface implicitly if possible, because it helps VB Migration Partner to generate
more linear code when the interface member is invoked, but there are cases when explicit implementation is the only
viable choice.
Notice that no other VB6-to-C# conversion software supports the ability to explicitly implement the members of an interface.
C# doesn’t support the On Error Goto keyword
VB Migration Partner automatically attempts to convert On Error Goto statements into
try-catch blocks, as if a
UseTryCatch pragma were specified at the project level.
In some cases, however, it is impossible to generate a try-catch block that is equivalent to the original VB6 code.
When this happens, VB Migration Partner emits a migration message. For example, this is what happens if the
execution “flows” into the error handler, as in this code:
Sub Test(ByVal x As Long)
On Error GoTo ErrorHandler
Dim z As Long
z = x - 1
x = x / z
ErrorHandler:
Dim y As Long
y = 12
x = y
End Sub
public void Test(int x)
{
int z = x - 1;
x /= z;
ErrorHandler:
int y = 12;
x = y;
}
The UPGRADE_ISSUE #04E8 message is also emitted when the method contains multiple On Error Goto statements, or one
On Error Goto 0 statement that disables a previous On Error Goto statement, or a Resume keyword.
If you see the #04E8 migration warning you can still force VB Migration Partner to generate a try-catch block,
even if the generated code isn’t functionally equivalent to the original VB6 code, by applying a project-,
class- or method-level
CSharpOption
ConvertOnErrorGoto pragma. For example, if this pragma is used in previous
VB6 code, this is the resulting C# code:
public void NotEquivalentTryCatch(int x)
{
int z = 0;
int y = 0;
try
{
z = x - 1;
x /= z;
}
catch (Exception _ex)
{
VB6Helpers.SetError(_ex);
y = 12;
x = y;
}
}
Notice that VB Migration Partner has generated a different UPGRADE_ISSUE message this time,
and you have the responsibility to manually fix the code after the migration.
Notice that Resume <label> statements are converted into goto <label> C# statements, which
nearly always cause a compilation error, because the Resume statement and the target label are located
in different blocks. Resume Next statements are always remarked and a migration warning is issued.
Notice that other VB6-to-C# conversion programs don’t always emit a warning if the try-catch block isn’t
functionally equivalent to the original VB6 code.
C# doesn’t support the On Error Resume Next keyword
C# doesn’t support the ability to just ignore errors, as it happens with VB6 and VB.NET when you specify the
On Error Resume Next keyword. By default, VB Migration Partner ignores this keyword and just emits an
UPGRADE_ISSUE #04E8 message when one is found:
Function Test(ByVal x As Long) As Long
On Error Resume Next
Test = 100 / x
End Function
public int Test(int x)
{
VB6Helpers.ClearError();
return 100 / x;
}
(Notice that a call to VB6Helpers.ClearError method is inserted, to mimic the fact that the On Error
Resume Next keyword resets the Err object.)
You can force VB Migration Partner to recognize the On Error Resume Next keyword by inserting the
CSharpOption
ConvertOnErrorResumeNext pragma, at the project, file, or method level. When this pragma is applied to previous
VB6 code, the generated C# code becomes:
public int Test(int x)
{
int _retValue = 0;
VB6Helpers.ClearError();
VB6Helpers.IgnoreError( () => {_retValue = 100 / x;} );
return _retValue;
}
As you see, individual statements under the scope of the On Error Resume Next keyword are rendered under C#
as anonymous lambda methods (i.e. the () => syntax). Lambda methods have several limitations and shortcomings,
one of which is the fact that they reduce the readability and maintainability of the generated C# code.
VB Migration Partner attempts to reduce code cluttering by gathering multiple anonymous lambdas inside a
single call to the VB6Helpers.IgnoreError helper method:
VB6Helpers.IgnoreError(
() => { x = y + 10;},
() => { y = z ^ 3} );
An important detail: the VB6Helpers.IgnoreError helper method executes all the anonymous lambda methods passed
to it as arguments, and internally invokes the VB6Helpers.SetError method if any of those lambda calls throw an
exception. This behavior perfectly mimics what VB6 does.
Things become more complex if the method contains If, Do, or While blocks. In this case, VB Migration Partner generates
a call to the VB6Helpers.IgnoreErrorBool helper method:
Public Function CaptionIsEmptyOrMissing(ByVal o As Object) As Boolean
On Error Resume Next
If o.Caption = "" Then
CaptionIsEmptyOrMissing = True
End If
End Function
public bool CaptionIsEmptyOrMissing(object o)
{
bool _retValue = false;
VB6Helpers.ClearError();
if (VB6Helpers.IgnoreErrorBool(()=> {return VB6Helpers.Invoke(o,"Caption")== "";}))
{
_retValue = true;
}
return _retValue;
}
Notice that the call to VB6Helpers.IgnoreErrorBool helper method is generated only if the expression may throw,
and is omitted for simple comparison expression such as x <> 0 or similar. Also, the helper method returns the
value of the expression passed to it, or true if the expression threw an exception. Returning true when an error
occurs ensures that the “next” statement is executed, if the helper method is invoked from inside an
if, elseif
or while block.
A serious limitation of anonymous lambda methods is that they can’t reference any ref/out parameter, because such a
reference would cause a C# compilation error. When this happens, VB Migration Partner generates a one-line
try-catch
block that wraps only the statement in question, as shown in this example:
Public Sub Test(x As Long, ByVal y As Long)
On Error Resume Next
y = y + 1
x = x * 2
End Sub
public void Test(ref int x, int y)
{
VB6Helpers.ClearError();
VB6Helpers.IgnoreError( () => {y++;} );
try { x *= 2; } catch (Exception _ex) { VB6Helpers.SetError(_ex);
}
}
If the original code contains an If, ElseIf, or Do block that uses an expression that references a ref/out
parameter, the code isn’t wrapped inside a call to VB6Helpers.IgnoreErrorBool, but VB Migration Partner
emits an UPDATE_ISSUE warning. It is your responsibility to check whether the expression can throw and,
if this is the case, manually fix the generated code.
Other VB6-to-C# migration tools may use a similar technique based on anonymous lambda methods to convert On
Error Resume Next statements; however, only VB Migration Partner correctly accounts for special cases such
as ref/out parameters in lambda methods and typically generates fewer C# compilation errors than its competitors.
C# doesn’t expose the Err object
Unlike Visual Basic, C# doesn’t keep track of the most error by means of the
Err object. VB Migration
Partner remedies by defining the VB6Helpers.Err object, which exposes the same properties and methods
as the VB6 Err object:
Err.Clear
Err.Raise 123, , "this is a description"
Debug.Print Err.Description
VB6Helpers.Err.Clear();
VB6Helpers.Err.Raise(123, null, "this is a description");
VB6Project.DebugPrintLine(VB6Helpers.Err.Description);
The generated C# code initializes the Err “pseudo-object” whenever an exception is thrown, by means
of a call to the VB6Helpers.SetError method that VB Migration Partner generates in a
try-catch block:
Sub Test(ByVal x As Long, ByVal y As Long, ByVal z As Long)
On Error GoTo ErrorHandler
x = x / y
Exit Sub
ErrorHandler:
x = 123
End Sub
public void Test(int x, int y, int z)
{
try
{
x /= y;
return;
}
catch (Exception _ex)
{
VB6Helpers.SetError(_ex);
x = 123;
}
}
The VB6Helpers.SetError method is also invoked behind the scenes by the
VB6Helpers.IgnoreError
and VB6Helpers.IgnoreErrorBool methods, which VB Migration Partner generates for code portions
that contain an On Error Resume Next statement and that are under the scope of a
CSharpOption
ConvertOnErrorResumeNext pragma.
C# requires strict typing (Option Strict On)
C# is a “very strongly-typed” language, and requires that you explicitly convert between different data types
any time an overflow error (or an error of another nature) might otherwise occur. (In this respect, C# is pickier
than VB.NET when the Option Strict On directive is used.) VB Migration can automatically insert all the conversion
and cast methods that are required
Public Sub Test(ByVal x As Integer, ByVal y As Long, ByVal s As String)
x = y
y = s
End Sub
public void Test(short x, int y)
{
x = (short)y;
y = VB6Helpers.CInt(s);
}
A minor annoyance caused by C# strict typing is that all integer math operators return a 32-bit integer,
even if both operators are 8-bit or 16-bit values. This means that assigning the result of a sum, a
subtraction, a multiplication, etc. to a variable that was declared as a VB6 Integer variable always generates
a cast to short, as this code demonstrates:
Public Sub DoubleIt(ByRef x As Integer)
x = x * 2
End Sub
public void DoubleIt(ref short x)
{
x = (short)(x * 2);
}
You can reduce the number of such cast operations by ensuring that all local variables be declared as Long
rather than Byte or Integer. This can be easily obtained by means of a
PreProcess pragma, for example:
Other VB6-to-C# conversion tools reduce cast operations by always assuming that all 16-bit variables
should be treated as 32-bit variables, an assumption that in some cases can generate subtle programming
errors, for example if the variable has to be written to file.
C# has both bitwise and logical And/Or operators
VB6 only offers bitwise And/Or operators, but the fact that True and False Boolean values are represented
by -1 (all bits set) and 0 (all bits cleared) means that, in practice, you can use these bitwise operators
as if they were logical operators.
VB.NET offers both bitwise and logical operators, where the logical AndAlso and OrElse operator provide
short-circuit evaluation and can avoid the evaluation of subexpressions whose value wouldn’t alter the overall
True/False value of the entire expression. However, when converting from VB6 to VB.NET VB Migration Partner
doesn’t attempt to convert And/Or into AndAlso/OrElse, because the added short-circuit evaluation feature might
alter the code behavior. (You can force the conversion to AndAlso/OrElse by means of the
LogicalOps pragma.)
When converting from VB6 to C#, however, VB Migration Partner detects whether the And/Or bitwise operators
were used as logical operators, and correctly emits the && and || operators if this is the case. We decided
to change the conversion default because C# developers would find it quite unnatural using bitwise operators
where a logical operator would be more appropriate. This behavior is by default and can’t be changed (in other
words, the LogicalOps pragma has no effect when converting to C#).
In the vast majority of cases replacing the original bitwise operator with its logical counterpart makes your
code more efficient, especially if you also specify the
MergeIfs pragma to merge nested IF blocks in a single expression.
However, there are a few cases when this behavior might introduce subtle bugs in your application.
Consider the following code:
If count <> 0 And Increment(count) > 10 Then DoSomething(count)
Function Increment(x As Long) As Long
x = x + 1
Increment = x
End Function
If (count != 0 && Increment(ref count) > 0)
DoSomething(count);
public int Increment(ref int x)
{
x++
return x;
}
The problem in previous code occurs if count is zero, because in such a case the VB6 code invokes
the Increment method anyway and therefore increments the variable, whereas the C# code doesn’t. In
this specific case you can solve the issue by using ByVal for the x parameter.
The bottom line: you should always check that complex Boolean expressions don’t invoke methods with
ByRef parameters or that have other undesired side effect, such as altering global variables. (Such
checks aren’t necessary if the Boolean expresson was the result of the
MergeIfs pragma.)
C# supports neither the <, <=, >, and >= string operators nor the Option Compare Text directive
A big surprise for VB developers switching to C# is that this latter language only supports the equal (==)
and nonequal (!=) operators to compare strings. When any other comparison operator is used between strings,
VB Migration Partner generates a call to the VB6Helpers.StrComp helper methods:
Sub TestStringComparisons(x As String, y As String)
If x = y Then
Debug.Print "Equal"
ElseIf x <> y Then
Debug.Print "Different"
ElseIf x > y Then
Debug.Print "Greater"
ElseIf x >= y Then
Debug.Print "Greater or Equal"
ElseIf x < y Then
Debug.Print "Less"
ElseIf x <= y Then
Debug.Print "Less or Equal"
End If
End Sub
public void TestStringComparisons(ref string x, ref string y)
{
if ( x == y )
{
VB6Project.DebugPrintLine("Equal");
}
else if ( x != y )
{
VB6Project.DebugPrintLine("Different");
}
else if ( VB6Helpers.StrComp(x, y) > 0 )
{
VB6Project.DebugPrintLine("Greater");
}
else if ( VB6Helpers.StrComp(x, y) >= 0 )
{
VB6Project.DebugPrintLine("Greater or Equal");
}
else if ( VB6Helpers.StrComp(x, y) < 0 )
{
VB6Project.DebugPrintLine("Less");
}
else if ( VB6Helpers.StrComp(x, y) <= 0 )
{
VB6Project.DebugPrintLine("Less or Equal");
}
}
To further complicate things, both VB6 and VB.NET support the Option Compare Text directive, which forces all string
comparisons to be case-insensitive. C# lacks this feature, therefore it has to generate slightly different code for
files where this directive is specified. For example, if the previous VB6 code snippet is defined in a file containing
the Option Compare Text directive, this is the C# code that VB Migration Partner generates:
public void TestStringComparisons(ref string x, ref string y)
{
if ( VB6Helpers.StrComp(x, y, CompareMethod.Text) == 0 )
{
VB6Project.DebugPrintLine("Equal");
}
else if ( VB6Helpers.StrComp(x, y, CompareMethod.Text) != 0 )
{
VB6Project.DebugPrintLine("Different");
}
else if ( VB6Helpers.StrComp(x, y, CompareMethod.Text) > 0 )
{
VB6Project.DebugPrintLine("Greater");
}
else if ( VB6Helpers.StrComp(x, y, CompareMethod.Text) >= 0 )
{
VB6Project.DebugPrintLine("Greater or Equal");
}
else if ( VB6Helpers.StrComp(x, y, CompareMethod.Text) < 0 )
{
VB6Project.DebugPrintLine("Less");
}
else if ( VB6Helpers.StrComp(x, y, CompareMethod.Text) <= 0 )
{
VB6Project.DebugPrintLine("Less or Equal");
}
}
Notice that the Option Compare Text directive also affects a few string methods, namely InStr, InstrRev,
and Replace. VB Migration Partner generates the correct C# code when these methods are used in files under
the scope of an Option Compare Text directive.
No other VB6-to-C# code converter honors the Option Compare Text directive.
C# uses the “+” operator for both addition and string concatenation
When translating VB6 code that uses the “+” operator and the dynamic data type is not used (that is, the
CSharpOption
UseObject pragma is present), it is essential to understand whether the operator stands
for “addition” or “concatenation”, because it might be necessary to adjust the type of one or both operands.
Understanding the correct type is very simple when both operands are numbers or both operands are strings, but
the rules becomes confused if one or both arguments are object variables. To make a correct guess of the correct
operator VB Migration Partner looks at several clues, including the type of the variable/parameter the result is
assigned or passed to.
If it is impossible to unambiguously detect the operator type, however, VB Migration Partner tends to opt for the
“addition” operator, and consequently converts both operands to double, using the
VB6Helpers.CDbl helper method,
as in this example:
Public Sub Test(ByVal v1 As Variant, ByVal v2 As Variant, ByVal n As Double, ByVal s As String)
n = v1 + v2
s = v1 + v2
v = v1 + v2
End Sub
public void Test(object v1, object v2, double n, string s)
{
n = VB6Helpers.CDbl(v1) + VB6Helpers.CDbl(v2); // addition is assumed
s = VB6Helpers.CStr(v1) + VB6Helpers.CStr(v2); // concatenation is assumed
o = VB6Helpers.CDbl(v1) + VB6Helpers.CDbl(v2); // addition is assumed
}
If VB Migration Partner’s assumption isn’t correct, you should edit the original VB6 code to
let the code analyzer better understand your code. For example, in above code you can force
the last assignment to use string concatenation by using a CStr method in original VB6 code:
v = v1 + CStr(v2)
Alternatively, you can use the
CSharpOption
AssumeConcatenation pragma to force VB Migration
Partner to use string concatenation when the available information is ambiguous or non-conclusive.
This pragma can have a project-, file-, or method-level scope, therefore different portions of the
VB6 project being migrated can use different default behaviors.
Notice that this problem doesn’t manifest when the dynamic data type is used, in which case, the following C#
code is generated and the operator type is determined dynamically at runtime:
public void Test(dynamic v1, dynamic v2, double n, string s)
{
n = v1 + v2;
s = v1 + v2;
o = v1 + v2;
}
No other VB6-to-C# code converter allows you to control how the “+” symbol should be interpreted.
C# doesn’t support comparisons between Object variables
Being a strongly-typed language, C# doesn’t support comparison operators between Object variables
(which might be generated by the conversion of VB6 Variant variables), therefore VB Migration Partner
has to generate code that converts one or both the operands of a comparison. Notice that the following
considerations only applies if the
CSharpOption
UseObject
pragma is used, which inhibits the generation
of dynamic variables.
When only one operand is an Object variable, VB Migration Partner assumes that such variable is of the
same type as the other, non-Object operand. If the non-Object variable is numeric, VB Migration Partner
assumes that you are comparing two numbers and converts the Object variable to a numeric type; if the
non-Object variable is a string, VB Migration Partner assumes that you are comparing two strings, therefore
converts the Object variable to a string and generates the most appropriate string operator or method.
(For example, if the code is under the scope of an Option Compare Text directive then all comparison operators
are converted to calls to VB6Helpers.StrComp method.)
Public Sub Test(ByVal v1 As Variant, ByVal v2 As Variant, _
ByVal n As Double, ByVal s As String, ByVal res As Boolean)
res = (v1 > n)
res = (v1 > s)
res = (v1 > v2)
End Sub
public void Test(object v1, object v2, double n, string s, bool res)
{
res = ( VB6Helpers.CDbl(v1) > n );
res = ( VB6Helpers.StrComp(VB6Helpers.CStr(v1), s) > 0);
res = ( VB6Helpers.CDbl(v1) > VB6Helpers.CDbl(v2) );
}
As you see in previous code, when both operands of a comparison are Object variable, by default VB Migration
Partner assumes that both of them are numbers and therefore converts them using the
VB6Helpers.CDbl method.
You can change this default behavior by inserting a
CSharpOption
AssumeStringComparison pragma. Like all CSharpOption
pragmas, you can specify it at the project, file, and method level, therefore you have all the necessary granularity
in how you affect the code generator behavior.
Another way to avoid or reduce this problem is using the
UseDynamic pragma.
No other VB6-to-C# code converter allows you to decide whether a late-bound comparison is actually a numeric or a
string comparison, and therefore force you to either fix the original VB6 code or the generated C# code.
C# doesn’t support comparison operators and the TO keyword in a switch block
The switch C# keyword broadly corresponds to Visual Basic’s Select Case keyword, however once you look a
bit more closely you see that there are many differences and that the switch
statement is far less flexible
than VB’s Select Case. For example, C#’s case blocks can only check for equality, don’t support comparison
operators such as <>, <, <=, > and >=, and don’t support ranges (i.e. the To keyword). In addition, the
switch
keyword only supports bool, int, string, and enum expressions.
VB Migration Partner always attempts to convert a Select Case into a switch block, because this keyword can be
optimized by the C# compiler into a jump table and in general delivers better performance. If using a
switch block
isn’t possible, VB Migration Partner reverts to a more flexible if…elseif block, as the following code demonstrates:
Public Sub Test(ByVal x As Integer, ByVal s As Single)
Select Case x
Case 1, 2
Debug.Print "First case"
Case Is = 3
Debug.Print "Second case"
Case Else
Debug.Print "Third case"
End Select
Select Case s
Case 1, 2
Debug.Print "One or Two"
Case < 0
Debug.Print "Negative"
End Select
End Sub
public void Test(int x, float s)
{
switch ( x )
{
case 1: case 2:
VB6Project.DebugPrintLine("First case");
break;
case 3:
VB6Project.DebugPrintLine("Second case");
break;
default:
VB6Project.DebugPrintLine("Third case");
break;
}
if ( s == 1 || s == 2 )
{
VB6Project.DebugPrintLine("One or Two");
}
else if ( s < 0 )
{
VB6Project.DebugPrintLine("Negative");
}
}
The main problem with if…elseif blocks is that the expression should be repeatedly evaluated in each
else
if block, a detail that can slow down your code or – worse – can lead to subtle bugs if the expression
invokes one or more functions that modify their parameters or have other side effects (e.g. modify global
variables). In converting a Select Case that tests an expression (as opposed to a simple variable), VB
Migration Partner assigns the expression to a temporary variable and then uses this temporary variable in
the if…elseif block, as this code demonstrates:
Select Case Rnd * 100
Case Is > 1
Debug.Print "One"
Case 2 To 9
Debug.Print "Two"
Case 10 To 20, 30 To 40
Debug.Print "Three or more"
End Select
float _switchVar1 = VB6Helpers.Rnd() * 100;
if ( _switchVar1 > 1 )
{
VB6Project.DebugPrintLine("One");
}
else if ( _switchVar1 >= 2 && _switchVar1 <= 9 )
{
VB6Project.DebugPrintLine("Two");
}
else if((_switchVar1>=10 && _switchVar1<=20)||(_switchVar1>=30 && _switchVar1<=40)
{
VB6Project.DebugPrintLine("Three or more");
}
Other VB6-to-C# code converters never generate a switch block; instead, they always generate
if…elseif blocks and
therefore produce less-than-optimized code. Worse, they never use a temporary variable for the
if…elseif expression,
which makes the code run slower and might introduce subtle bugs.
C# foreach loops variables can’t be passed to a ref/out parameter
Here are two minor difference between Visual Basic (both VB6 and VB.NET) and C#: first, the
controlling variable of a foreach loop must be declared at the top of the foreach loop; second,
the controlling variable cannot be passed to a by-reference parameter when invoking a method.
(Passing it to a by-value parameter is ok.) In fact, when passing a foreach controlling variable
to a by-reference parameter the C# compiler generates the following compilation error:
Cannot pass 'varname' as a ref or out argument because it is a 'foreach iteration variable
VB Migration Partner works around the first problem by creating a new variable as the foreach controlling
variable. Interestingly, this technique indirectly solves also the second problem, as this code demonstrates:
Public Sub Test(ByVal col As Collection)
Dim v As Variant
For Each v In col
DoSomething v
Next
End Sub
public void Test(Collection6 col)
{
object v = null;
foreach (object v_var in col)
{
v = v_var;
DoSomething(ref s);
}
v = null;
}
Notice in previous code that VB Migration Partner has created an aliased variable named
v_var
as the loop controlling variable, and assigns v = v_var so that all the code inside the loop
works as expected; it is now possible to pass the v variable to the first parameter of the
DoSomething method without causing a compilation error, because v isn’t the loop controlling variable.
Also notice that the v variable is set to null when the loop is exited, because this is the value
that it is assigned when a VB6 For Each loop terminates.
Optionally, you can use the
CSharpOption
OptimizeForEach pragma to have VB Migration Partner generate
foreach loops that don’t use the aliased name_var variable. More precisely, this optimization can be
applied if the variable in question is used only inside the foreach loop. This pragma, however, can
generate one or more compilation errors if the loop variable is passed to a by-reference parameter.
Consider the following code:
Public Sub Test(ByVal col As Collection)
Dim v As Variant, v2 As Variant
For Each v In col
DoSomething v
Next
v2 = "success"
For Each v2 In col
DoSomething v2
Next
End Sub
public void Test(Collection6 col)
{
object v2 = null;
foreach (object v in col)
{
DoSomething(ref v);
}
v2 = "success";
foreach (object v2_var in col)
{
v2 = v2_var;
DoSomething(ref v2);
}
v2 = null;
}
Notice that VB Migration Partner could avoid using an aliased variable the first foreach loop, because
the v variable only appears inside the loop, whereas it couldn’t apply this optimization to the second
loop because the v2 variable appears outside the loop.
However, in this particular case the
CSharpOption
OptimizeForEach pragma causes a compilation error, because
the loop variable is passed to a by-reference parameter of the DoSomething method.
If you see this compilation error you have two options. First, if all the loops in the method suffer from this problem,
override the file-level pragma with a method-level pragma that disables the optimization, e.g.:
Public Sub Test(ByVal col As Collection)
End Sub
Alternatively, you can decide which foreach loops should be optimized by adding a “dummy” VB6 statement outside
the loop. In the above code snippet, you might add the following statement to make VB Migration Partner believe
that the v variable is used outside the loop:
Public Sub Test(ByVal col As Collection)
Dim v As Variant, v2 As Variant
Set v = Nothing
For Each v In col
DoSomething v
Next
End Sub
Other VB6-to-C# conversion programs don’t give you the ability to select whether and which foreach loops should
be optimized and rendered without the aliased variable.
C# doesn’t support multi-level “break” keywords
In Visual Basic (both VB6 and VB.NET) you must use the appropriate Exit keyword to exit loops;
in other words you must use Exit For to exit a For or For Next loop, Exit Do to exit a Do loop,
or Exit While to exit a while loop. Conversely, in C# you always use the break
statement to exit all sorts of loops.
While the C# approach seems to be more concise and elegant, it has a serious limitation. In Visual
Basic you can use an Exit keyword to exit deeply nested loops, as this code demonstrates:
Sub Test(ByVal x As Long, ByVal y As Long)
For x = 1 To 100
y = x
Do While y < 100
y = y + 1
If x * y > 10000 Then Exit For
Loop
Next
End Sub
VB Migration Partner correctly handles these cases, by adding a goto statement:
public void Test(int x, int y)
{
for (x = 1; x <= 100; x++)
{
y = x;
while ( y < 100 )
{
y++;
if ( x * y > 10000 )
{
goto ExitLoop_1;
}
}
}
ExitLoop_1:
}
Other VB6-to-C# conversion programs don’t account for Exit keywords inside nested loops and
generate code that compiles correctly but is severely bugged.
C# doesn't support With...End With blocks
Both VB6 and VB.NET support With…End With blocks, whereas C# doesn’t. VB Migration Partner works around this
limitation in two ways: if the With expression is a simple variable, then the variable is repeated for each
statements inside the With block; conversely, if the With expression is an expression, then VB Migration
Partner generates a temporary variable that is assigned the expression, and then uses the temporary variable
for statements inside the With block:
Dim wid As New Widget
With wid
.Name = "test"
.ID = 1234
With .CreateNewOrder()
.ID = 99
.Qty = 12
End With
End With
Widget wid = new Widget();
wid.Name = "test";
wid.ID = 1234;
WidgetOrder _withVar1 = wid.CreateNewOrder();
_withVar1.ID = 99;
_withVar1.Qty = 12;
Notice that VB Migration Partner detected that the variable for the nested With block is a function call,
therefore correctly generates the _withVar1 temporary variable to ensure that the function is invoked only once.
C# doesn’t support the Declare statement
Visual Basic uses the Declare statement to define methods defined in an external DLL, whereas C# requires that
these methods be defined as static extern methods flagged with the DllExport attribute.
VB Migration Partner takes care of all the necessary conversion details, as shown by following example:
Public Declare Function Beep Lib "kernel32.dll" (ByVal dwFreq As Long,_
ByVal dwDuration As Long) As Long
Public Declare Function SendMessage Lib "user32.dll" Alias "SendMessageA"_
(ByVal hwnd As Long, ByVal wMsg As Long, ByVal wParam As Long, ByRef lParam As Any) As Long
Public Declare Function GetWindowText Lib "user32.dll" Alias "GetWindowTextA"_
(ByVal hwnd As Long, ByVal lpString As String, ByVal cch As Long) As Long
Sub Test()
Dim wincaption As String
wincaption = Space(255)
wincaption = Left(wincaption, GetWindowText(frmMain.hWnd, wincaption, 255))
Debug.Print wincaption
End Sub
public delegate int EnumWindows_CBK(int handle, int lParam);
[DllImport("kernel32.dll")]
public static extern int Beep(int dwFreq, int dwDuration);
[DllImport("user32.dll", EntryPoint="SendMessageA")]
public static extern int SendMessage(int hwnd, int wMsg, int wParam, ref int lParam);
[DllImport("user32.dll", EntryPoint="SendMessageA")]
public static extern int SendMessage(int hwnd, int wMsg, int wParam, int lParam);
[DllImport("user32.dll", EntryPoint="SendMessageA")]
public static extern int SendMessage(int hwnd, int wMsg, int wParam, string lParam);
[DllImport("user32.dll", EntryPoint="GetWindowTextA")]
public static extern int GetWindowText(int hwnd, [MarshalAs_
(UnmanagedType.VBByRefStr)] ref string lpString, int cch);
[DllImport("user32.dll")]
public static extern int EnumWindows(int lpEnumFunc, int lParam);
[DllImport("user32.dll", EntryPoint="EnumWindows")]
public static extern int EnumWindows_Private(EnumWindows_CBK lpEnumFunc, int lParam);
public void Test()
string wincaption = VB6Helpers.Space(255)
wincaption = VB6Helpers.Left(wincaption, GetWindowText(frmMain.hWnd, ref wincaption, 255));
VB6Project.DebugPrintLine(wincaption);
End Sub
Please notice that VB Migration Partner performs several tasks in addition to the mere translation of the
Declare keyword, namely:
VB Migration Partner manages an internal list of the most common Windows API methods, and generates the appropriate
MarshalAs
attribute. However, your VB6 project might be using an external method that takes a ByVal string with by-reference semantics
and that isn’t included in VB Migration Partner’s internal list.
In such a cases you can tell VB Migration Partner that a given string parameter uses by-reference semantics by using
the special VB6ByrefString data type. Since you can’t use this fictitious data type in VB6 code, the best approach
is using a
ParseReplace pragma to modify the VB6 Declare statement. For example, assume that you have the following code:
Declare Function GetStringValue Lib "mylibrary.dll" (ByVal buffer As String,_
ByVal size As Long) As Long
Here’s how you can use the
ParseReplace pragma to tell VB Migration Partner that the first parameter uses
by-reference semantics, and the C# code that is generated:
Declare Function GetStringValue Lib "mylibrary.dll" (ByVal buffer As String,_
ByVal size As Long) As Long
[DllImport("mylibrary.dll")]
public static extern int GetStringValue([MarshalAs(UnmanagedType.VBByRefStr)]_
ref string buffer, int size);
C# doesn’t support math operators and function in #define and #if directives
Unlike Visual Basic, C# doesn’t support math operators and method calls inside #const, #if and #elif compiler
directives. If necessary, VB Migration Partner generates custom #define or #undef statements containing derivate
compilation constants, with remarks that show the original expression each constant corresponds to. If possible,
these constants are given self-explanatory names, eg. VALUE_EQ_1. Here’s an example:
#Const CONST_ZERO = 0
#Const CONST_ONE = 1
#Const CONST_TWO = 2
#If CONST_ONE = 1 Then
Debug.Print "One"
#ElseIf CONST_ONE = 2 Then
Debug.Print "Two"
#End If
#If CONST_ONE > 1 Then
Debug.Print "Zero"
#ElseIf CONST_ONE > 1 Or CONST_TWO >= 2 Then
Debug.Print "Win32"
#End If
#If Sgn(CONST_ONE) > 0 Then
Debug.Print "One"
#ElseIf CONST_ONE <= CONST_TWO Then
Debug.Print "Two"
#ElseIf Not CONST_ONE Then
Debug.Print "None"
#End If
#undef CONST_ZERO
#define CONST_ONE
#define CONST_TWO
#define CONST_ONE_EQ_1
#undef CONST_ONE_EQ_2
#undef CONST_ONE_GT_1
#define DEFINE_EXPR_1
#define DEFINE_EXPR_2
#define CONST_ONE_LE_CONST_TWO
#if CONST_ONE_EQ_1
VB6Project.DebugPrintLine("One");
#elif CONST_ONE_EQ_2
Debug.Print "Two"
#endif
#if CONST_ONE_GT_1
Debug.Print "Zero"
#elif DEFINE_EXPR_1
VB6Project.DebugPrintLine("Win32");
#endif
#if DEFINE_EXPR_2
VB6Project.DebugPrintLine("One");
#elif CONST_ONE_LE_CONST_TWO
Debug.Print "Two"
#elif !CONST_ONE
#endif
To ensure that the converted C# code is functional equivalent to the original VB6 code, VB Migration Partner
generates several #define and #undef directives, depending on whether the corresponding value is nonzero or zero.
Additionally, it generates a remark to the right of each “derivate” #define or
#undef directive, reporting the
original value or expression the compilation constant comes from.
It is crucial that you don’t delete these remarks and that you manually change
#define into #undef, or vice versa,
if the value of any of the “primitive” compilation constants changes in the future.
Other VB6-to-C# conversion tools are unable to handle all the subtleties of VB6 #If compiler directive and
tend to generate incorrect code that generates either compilation errors or, worse, that include/exclude the
wrong set of C# statements.
C# doesn’t support initializing a class-level field by using another class-level field
In VB.NET it is legal to initialize a class-level field with an expression that contains a reference
to another class-level field. When migrating from VB6 to VB.NET, such code can be the result of a
refactoring technique that moves initialization from inside a Class_Initialize method, as in this example:
Public FirstName As String
Public LastName As String
Private Sub Class_Initialize()
FirstName = "Joe"
LastName = FirstName & " Doe"
End Sub
Public FirstName As String = "Joe"
Public LastName As String = FirstName & " Doe"
Private Sub Class_Initialize_VB6()
End Sub
When converting the previous code to C#, however, you get a compilation error, because the LastName field is
assigned an expression that contains a reference to the FirstName field:
public string FirstName = "Joe";
public string LastName = FirstName + " Doe";
private void Class_Initialize_VB6()
{
}
You can get rid of these compilation errors by means of the
SetOption DisableInitializeOptimization, which
disables the refactoring technique. If this pragma is inserted in the above VB6 code, this is the result you get:
public string FirstName;
public string LastName;
private void Class_Initialize_VB6()
{
FirstName = "Joe";
LastName = FirstName + " Doe";
}
You can disable the refactoring technique at the project- or the file-level, so in practice you can and should
use it only inside the files where a compilation error appears.
C# gotos can only jump to labels that are defined in the same syntax block
In C#, the statements included in a pair of { and } curly brackets define a scope block, a detail
that may make the conversion from VB6 to C# very complex in some cases.
In fact, if a goto keyword in one block targets a label defined in a different block, a compilation
error occurs. This problem becomes apparent when VB Migration Partner converts a Goto keyword that is
located inside an If, Do, For, or Select Case block. The compilation error message that you get in such cases is:
No such label 'xxx' within the scope of the goto statement
In a few cases you can get rid of this error by applying the right pragma. For example, if the error is caused by a
Gosub keyword that is being translated into a “push+goto” pair, you can try using the
ConvertGosubs pragma to convert
the Gosub into a method call instead.
In most cases, however, there is very little you can do, short of manually fixing the generated C# code. Better yet,
you should consider modifying the original VB6 code to get rid of the Goto statement.
C# doesn't support default form instances
Unlike VB6 and VB.NET, the C# language doesn’t define a “default instance” for the forms defined in the current
project. To work around this limitation, VB Migration Partner generates a static property named
DefInstance in each form class in the project, and adjusts form references as needed:
Form1.BackColor = Form1.ForeColor
Form1.DefInstance.BackColor = Form1.DefInstance.ForeColor;
In majority of cases, the generated C# code is functionally equivalent to the original VB6 code, but there is an
exception. In VB6 and VB.NET, you can close/unload and later reuse the default instance, and the “new” reference
that you get is always the same form instance; most important, all fields defined at the form level retain their
previous value.
Conversely, when you close/unload or set a C# form’s “default instance” to null, the form instance is actually
destroyed. If you later reference again the “default instance”, another form is re-created, and all the fields
in the new instance will be initialized to their default value (zero, empty string, or null).
In some rare cases, this behavior can introduce minor bugs in your converted project. Unfortunately, it is impossible
to reproduce the VB6/VB.NET behavior in C#, therefore you might need to manually fix either the original VB6 code or
the generated C# code.
C# doesn’t support the VB.NET application framework
The migration from VB6 to VB.NET is simplified by the fact that the latter language supports an application
framework that lets you decide whether the project has a startup form or a splash screen, and whether the
application closes when the main form closes or when all forms close.
C# doesn’t support such an application framework: all C# programs must have a static
void Main method where
the execution begins. Such a method typically contains an Application.Run statement that displays a given
form modally; when this form closes, the entire application terminates.
If the VB6 project being converted doesn’t have a Sub Main method, VB Migration Partner generates a class named
Program and a method Main inside that class, which in turn contains an Application.Run statement that shows the
default instance of the startup form.
static class Program
{
[STAThread()]
static void Main()
{
Application.EnableVisualStyles();
Application.Run(Form1.DefInstance);
}
}
This code works fine in most circumstances, however it doesn’t run as intended if the VB6 application has a splash screen
which in turn loads the “real” main form and then unloads itself. In such a case, when converting from VB6 to VB.NET it
is possible to use the
EnableAppFramework pragma to select the splash screen; however this pragma is ignored when converting
to C# because this language doesn’t come with application framework.
In simpler scenarios you can work around this issue by using the VB6Helpers.InitializeFormChaning method and manually
changing the Application.Run statement into a statement that loads the splash screen, as in this example:
static class Program
{
[STAThread()]
static void Main()
{
if ( VB6Helpers.InitializeFormChaining() ) return;
frmSplash.DefInstance = VB6Helpers.LoadForm(frmSplash.DefInstance);
frmSplash.DefInstance.Show();
}
}
In other, more complex, scenarios it might be necessary to either modify the original VB6 project or the
generated C# code to get rid of the splash screen form.
C# can’t work with the special VB6Variant data type
An important limitation is that the special VB6Variant data type isn’t supported when converting to C#.
The problem is, the VB6Variant data type relies on several VB.NET features that C# lacks. (It is
theoretically possible to define a different data type that at least partially mimics that behavior of
Variant variables also under C#, but at this time we don’t have plans to add such a feature to VB Migration
Partner.)
For these reasons, you should avoid using the
ChangeType or
SetType pragmas to render a Variant variable
as a VB6Variant variable. If you do so you don’t receive any migration warning, yet the pragma will be ignored.
Likewise, VB Migration Partner doesn’t support the
VariantConversionSupport pragma, which is only useful with VB6Variant
variables.
NOTE: starting with version 1.52, the VB6Variant class is not officially supported.
C# developers may prefer using native .NET methods rather than methods defined in the VB6Helpers class
VB Migration Partner maps all VB6 library methods – e.g. Left or DoEvents – to methods defined in the
VB6Helpers
class, which is part of the support library used by all migrated projects. This approach is necessary because
only these helper methods ensure that the generated C# code works exactly like the original VB6 code:
Sub Test(ByVal x As Integer, ByVal s As String)
s = Left(s + Space(x), x)
End Sub
public void Test(short x, string s)
{
s = VB6Helpers.Left(s + VB6Helpers.Space(x), x);
}
You can reduce the calls to helper methods by means of the
UseNetMethods pragma, which can be applied at the
project-, file-, or method-level scope. If the previous VB6 code is under the effect of the
UseNetMethods
pragma, the generated C# code is different:
public static void Test(short x, string s)
{
s = (s + new string(' ' x)).Substring(0, x);
}
Please notice that, in general, replacing a VB6Helpers method with its native .NET equivalent seldom delivers C#
code that is 100% functionally equivalent to the original VB6 code. For example, the
VB6Helpers.Left(s, n) method
works fine even if n is greater than the length of the s string (as it happens with the VB6 Left function), whereas
the s.SubString(0, n) method throws an ArgumentOutOfRange exception in this case.
IMPORTANT NOTE #1: if you use the UseNetMethods pragma, it is your responsibility to ensure that no bugs are
introduced in the converted C# code.
IMPORTANT NOTE #2: Not all VB6Helpers methods can be mapped to a native .NET method; we plan to extend the list
of supported methods in future VB Migration Partner, but our primary goal is to deliver C# code that works correctly,
as opposed to C# code that uses as many .NET methods as possible.
The
UseNetMethods pragma can take two optional arguments, which affect the number of cases when VB Migration Partner is
allowed to use them. The first parameter is a regular expression that contains the list of VB6Helpers methods that VB
Migration Partner is allowed to replace with .NET methods. For example, the following pragma tells VB Migration Partner
to replace only the Left and Space functions inside the current Test method:
Sub Test(ByVal x As Integer, ByVal s As String)
End Sub
Whereas the following pragma prevents VB Migration Partner from converting the Split and Join functions found in
the entire converted project:
The second optional argument is a Boolean that specifies how “aggressive” the pragma will be and if it is OK to repeat
subexpressions in the generated code. An example will make this concept clearer. Consider the following VB6 code:
Sub Test(ByVal x As Integer, ByVal s As String)
s = Right(s, x)
s = Right(Space(x) + s, x)
End Sub
public static void Test(short x, string s)
{
s = s.Substring(s.Length - x);
s = VB6Helpers.Right(new string(' ', x) + s, x);
}
As you may notice, only the first occurrence of VB6Helpers.Right was converted into the SubString
.NET method; the second occurrence was not converted because it would have produced unnaturally
bloated and inefficient code that contains a repetition of the new string(' ', x) + s subexpression.
If you really wish to get rid of the VB6Helpers.Right call, however, you can force VB Migration Partner
to do so, by specifying True in the second argument of the
UseNetMethods pragma:
Sub Test(ByVal x As Integer, ByVal s As String)
s = Right(Space(x) + s, x)
End Sub
public static void Test(short x, string s)
{
s = (new string(' ', x) + s).Substring((new string(' ', x) + s).Length - x);
}
It’s evident that the generated code is less efficient than it is when using the VB6Helpers.Right method.
However, you might wish to generate it anyway, if you later plan to optimize it by hand, when the migration
is complete. In this specific case, the statement would be simplified as follows:
s = (new string(' ', x) + s).Substring(s.Length);
No other VB6-to-C# conversion program provides the ability to decide whether VB6 functions are to be mapped to
.NET native methods and how “aggressive” the replacement should be. As a result, they tend to generate code that
isn’t 100% functionally equivalent to the original VB6 code and that may possibly perform in a less-than-optimal way.
C# requires special helper methods for files longer than 2^31 bytes
When converting to VB.NET, VB Migration Partner converts the Seek#, Loc# and LOF# VB6 functions into FileSeek6, Loc6,
and LOF6 functions, respectively. These functions return a 64-bit integer, which means that they are ready to handle
files of any size.
When designing a similar set of file methods to be exposed by the VB6Helpers class for C# applications, we realized
that having to deal with file functions that return a long value would have forced VB Migration Partner to generate
a lot of casts in generated code (because in most cases the returned value is assigned to a 32-bit integer variable):
int filesize = (int) VB6Helpers.LOF(filename)
For this reason, the FileSeek, Loc and LOF functions defined in VB6Helpers class return a 32-bit value, which means that
they work fine with files up to 2^31 bytes (about 2GB). However, the class also exposes three additional methods named
FileSeek64, Loc64, and LOF64, which return a 64-bit value.
However, applying the above pragma is surely going to cause several casting compilation errors in the generated code,
and you have to fix such compilation errors by hand.
Other minor differences between Visual Basic and C#
This section outlines a few other minor differences between Visual Basic and C#. In general, VB Migration
Partner automatically accounts for all these differences, which we describe here only for reference purposes:
- C# is case-sensitive: VB Migration Partner translates all VB symbols so that they use the same casing, even
if they appear with different cases in the VB6 code. An exception to this rule occurs when you apply the UseDynamic
pragma to have VB Migration Partner generate late-bound method calls (in which case the casing found in the original
VB6 code is used).
-
C# has a different set of keywords and other reserved names (e.g. “Properties”): VB Migration Partner ensures that
VB6 variables and methods whose name would be invalid in C# are correctly renamed to avoid compilation errors.
-
C# doesn't support project-level namespace imports: All the namespaces that would be imported at the project-level
are rendered as a using statement inside each and every source file. VB Migration Partner supports the
AddImports
pragma to add either project-level or file-level using directive, but it is recommended that you only use this pragma
only to add file-level using statements, to avoid unnecessary clutter in other files.
-
C# doesn’t support Octal constants (eg &O1234567): VB Migration Partner converts these constants into hex values.
-
C# requires that non-integer numeric literals have a trailing "F" or "M" suffix when assigned to a float or decimal
variable: this is a special case of strict typing and VB Migration Partner automatically accounts for it.
-
C# uses the "\" (backslash) character in string literals as an escape character: If a string literal contains one or
more backslashes, VB Migration Partner converts it into a "@" (verbatim) string.
-
C# can't implement the Mid method to assign a substring: this happens because .NET doesn't support properties that take
a by-reference parameter, and in fact the VB.NET compiler generates some hidden code to work around this limitation.
When converting to C#, VB Migration Partner converts assignments that use the Mid method into calls to the VB6Helpers.MidSet
method.
-
C# requires that the parameter for property setters be named "value": VB Migration Partner correctly changes the name
of this parameter if necessary.
- C# doesn’t support the Collection object: VB Migration Partner converts all
Collection references to the Collection6 object defined in the support library.
- C# issues a warning if a class or method lacks an XML comment: VB Migration
Partner avoids a large number of compilation warnings of this type by disabling
it in the Properties-Build page.
Pragmas that aren’t supported when converting to C#
The following migration pragmas aren’t supported or have a different behavior when
converting to C#:
UseTryCatch: this pragma is always assumed to be present, and VB Migration
Partner always attempts to convert On Error statements to try-catch blocks.
DeclareImplicitVariables: this pragma is always assumed to be present, because
C# requires that all variables be declared.
LogicalOps: this pragma is ignored, because VB Migration Partner automatically
detects when an And/Or operators should be translated into a logical && or || operator.
FixRemarks: this pragma is ignored because it is useless when converting
to C#.
NullSupport: this pragma is ignored and most methods defined in the VB6Helpers
class can accept and return null values in all cases - even though in most cases
this ability won’t prevent exceptions from appearing at runtime, if your code isn’t
prepared to handle the DBNull value returned by these methods.
BinaryCompatibility: this pragma is ignored, as current version of VB Migration
Partner is unable to generate binary-compatible DLLs when converting to C#.
EnableAppFramework: this pragma is ignored, because C# doesn’t support the
kind of application framework that VB.NET supports.
VariantConversionSupport: this pragma is ignored because it is only useful
with VB6Variant variables, which aren’t supported in this version.
LateBoundProperties,
LateBoundMethods, and
LateBoundVariantMembers:
all these pragmas are ignored when converting to C#.
